Dynon hdx to a HUD.

Brent Dana

Member
Joined
Aug 23, 2020
Messages
79
I am trying to put A hud on my dash. Would like it to project the info from my dynon display? Anybody know which pin or wire would allow me to do this? Does it need to originate out of the adahrs, or the hdx, or the D10a? There has to be a simple way, as i know there are video capabilities in the system? Maybe a wire from each so i could choose which to see. Really l want heading, altitude and , and turn direction.


uvaplane

New Member
Joined
Feb 8, 2020
Messages
9
Good question! Bump! Hoping Dynon will shed light, as I had the same thought.


Dynon

Dynon Staff
Staff member
Joined
Jan 14, 2013
Messages
13,903
Location
Woodinville, WA
There isn't a video output from SkyView, but, some HUDs may be able to take the Dynon ADAHARS serial data from one of SkyView's configurable serial ports and create a display based on that. That compatibility would happen on the HUD manufacturer's side, though.


ty1295

New Member
Joined
Jan 10, 2020
Messages
5
One of our local hangar bums has done just this with a dynon panel, and a hud using a rasberry pi as a controller from the serial data.

I believe he even made his efforts public.


N21HV

I love flying!
Joined
Aug 27, 2017
Messages
25

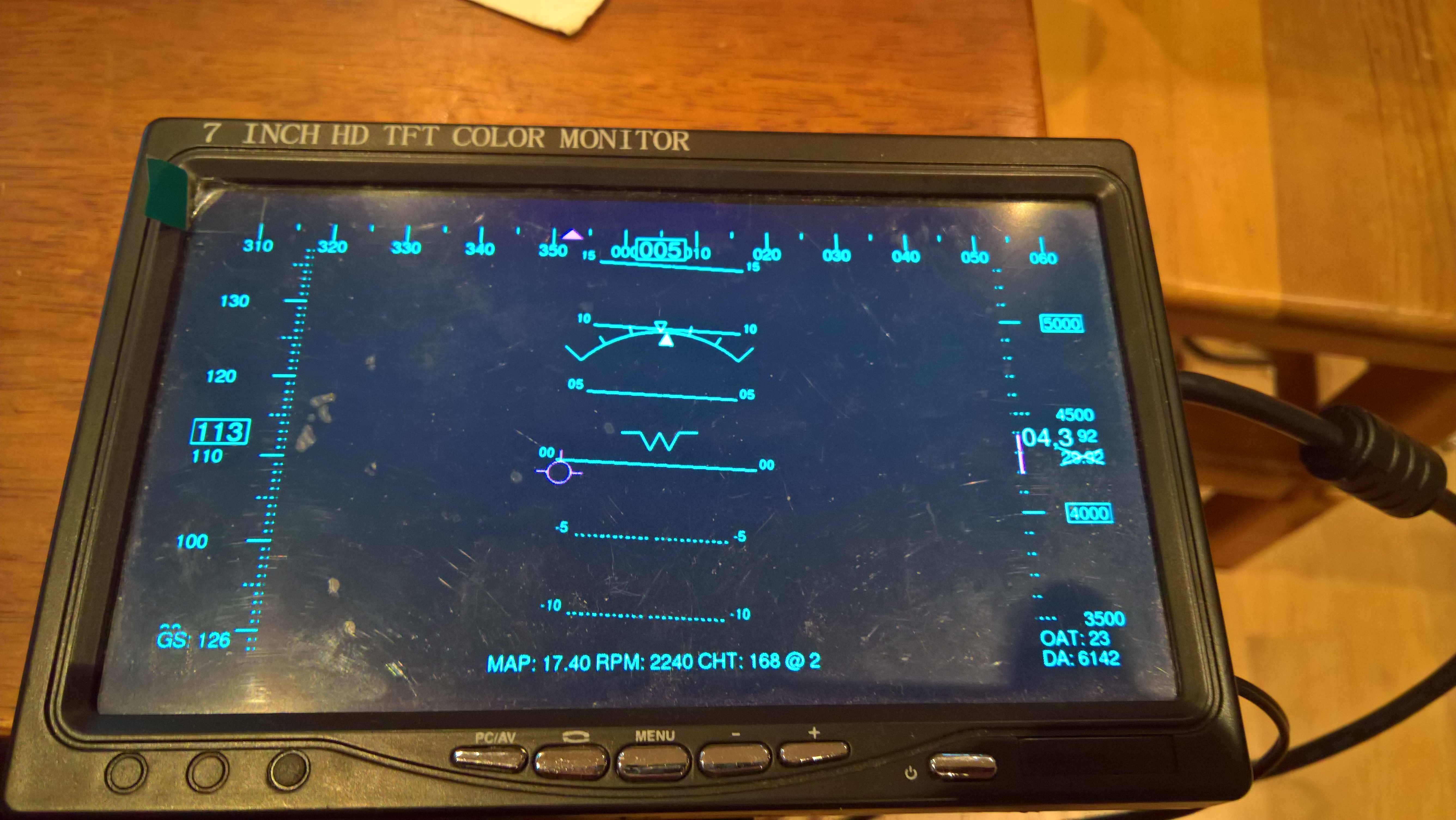

I have experimented with the concept by taking the serial out from HDX into RaspberryPi and produce symbology that shows flight conditions. This proof of concept shows the live code running on Pi receiving the "playback" of actual HDX flight in my airplane in real time. This was in 2018. I have not found a satisfactory light engine I was willing to put in my airplane so I shelved the project. The "frame rate" is a bit on the slow side since it is entirely dependent on HDX's RS-232 streaming but it felt definitely doable. If I come up with a reasonable light engine, I will pick it back up.
