KFC200 Schematic or "De"installation Manual?

TheFruck

New Member
Joined
Oct 7, 2021
Messages
15
Hello

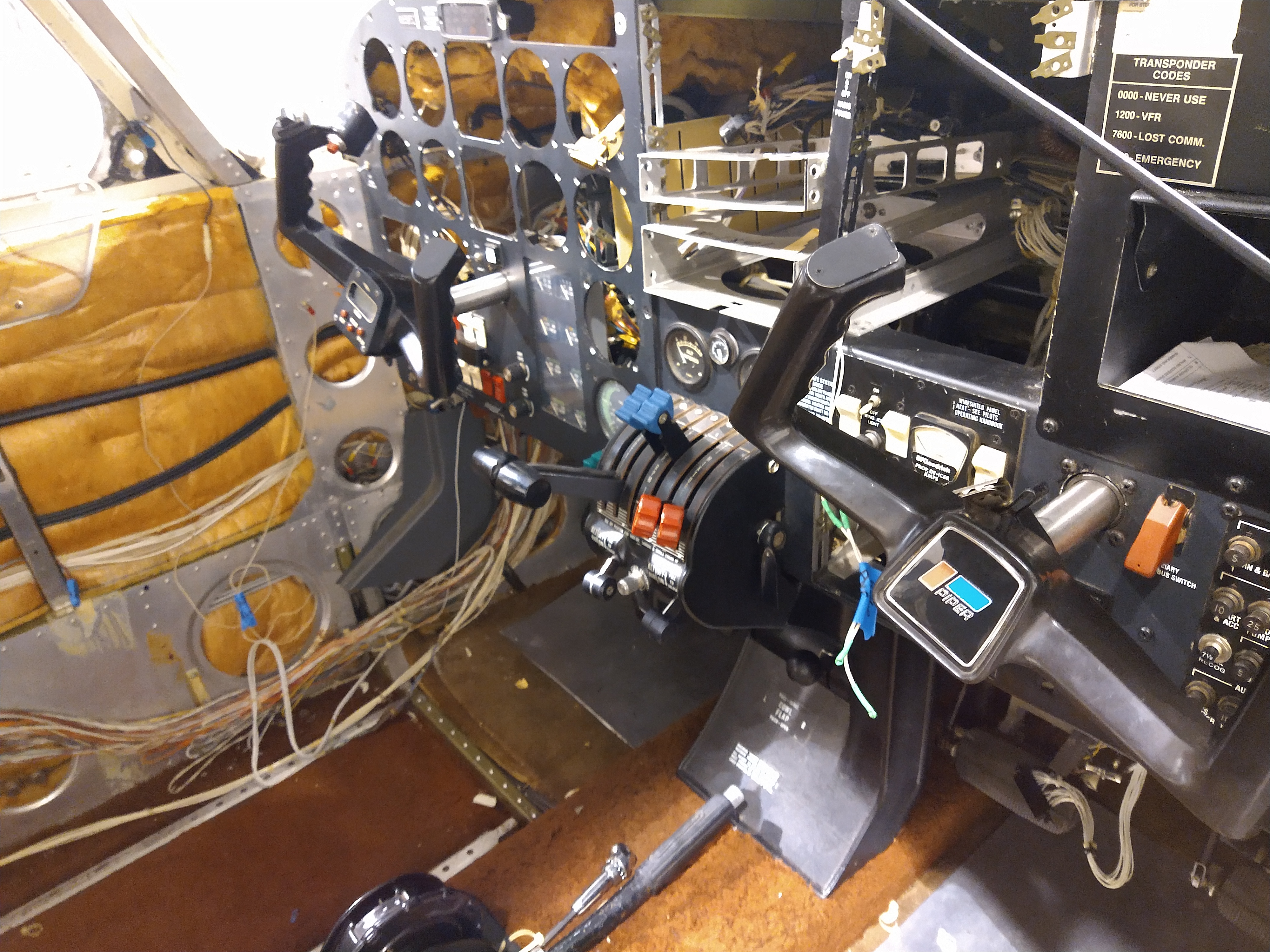

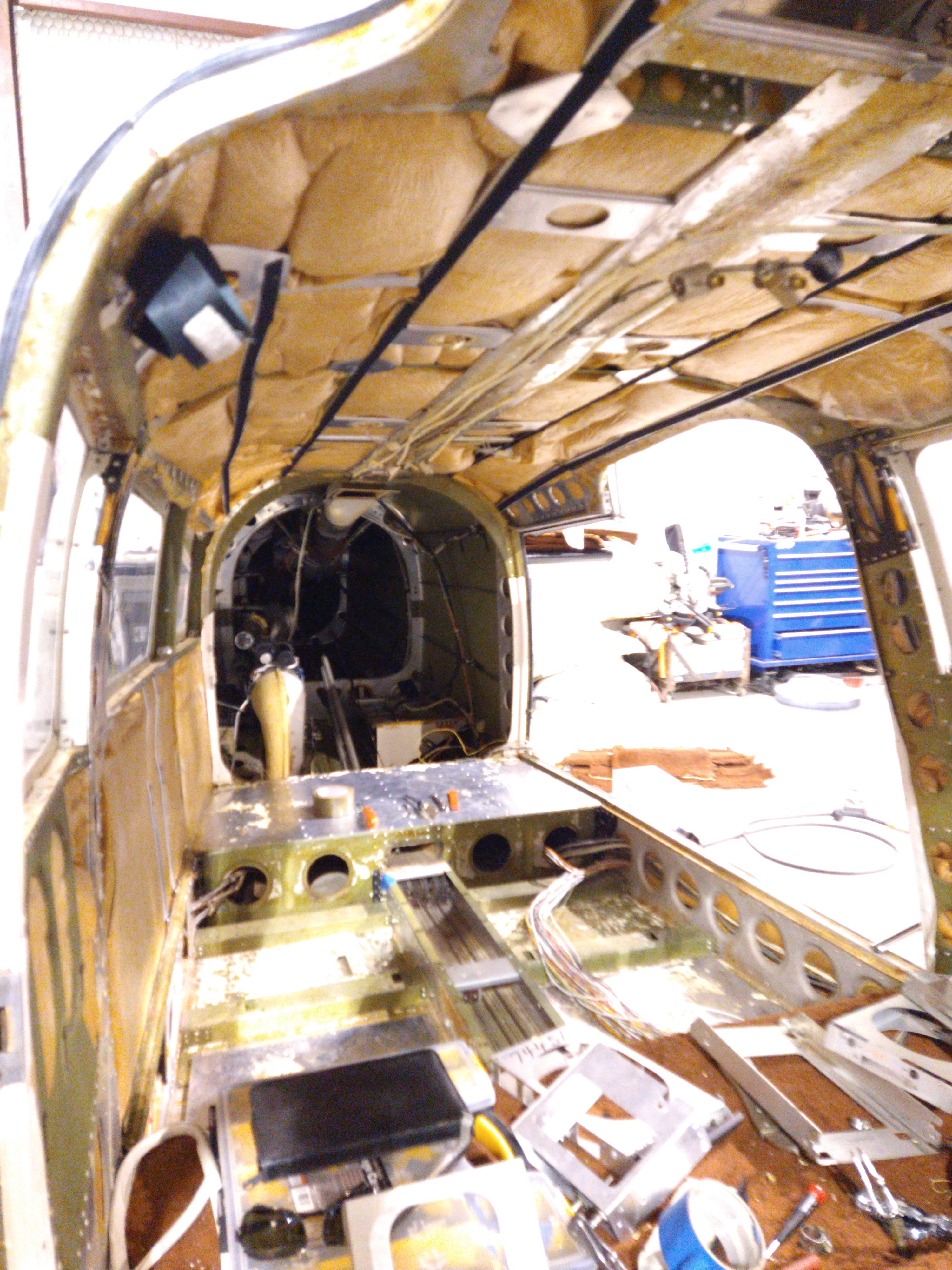

Looking for a little help. Tearing out all the old stuff in the Seneca III. As I remove the KFC flight computer, I see that the trim servo is directly wired to the Flight computer. I intend to keep the abilities of the electric trim, but I do not have any wiring diagrams for this system. Does anyone have a wiring schematic for the KFC200 or and installation manual which might include the trim servo yup through the dual trim buttons. While this is for the Seneca, I suspect any manual or schematic for the KFC200 will be of value.

Thx,
--mick


ilateapex

New Member
Joined
Feb 28, 2021
Messages
21
I think I still have one for the Bonanza A36 model. Give me an email address and I’ll try and find the pdf.

Michael


ilateapex

New Member
Joined
Feb 28, 2021
Messages
21
Here you go.

Michael


Attachments

  • KFC200A36 Install Manual.pdf
    9.1 MB · Views: 303
