Connecting Manifold Pressure measurement to Dynon

Steve SR

New Member
Joined
May 19, 2020
Messages
26
The 914 shows the MAP being taken from the Connector tube, which is pretty ittybitty. I then have to run it to the Dynon MAP Sensor, which is 1/4", a lot bigger. The Dynon manual says you might have to step down from the Dynon in/output to the specific engine, is this what you all have done?

TIA

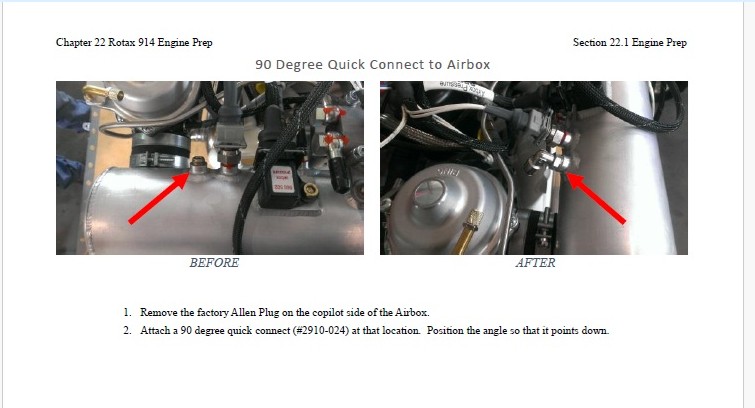

map Rotax manual.jpg

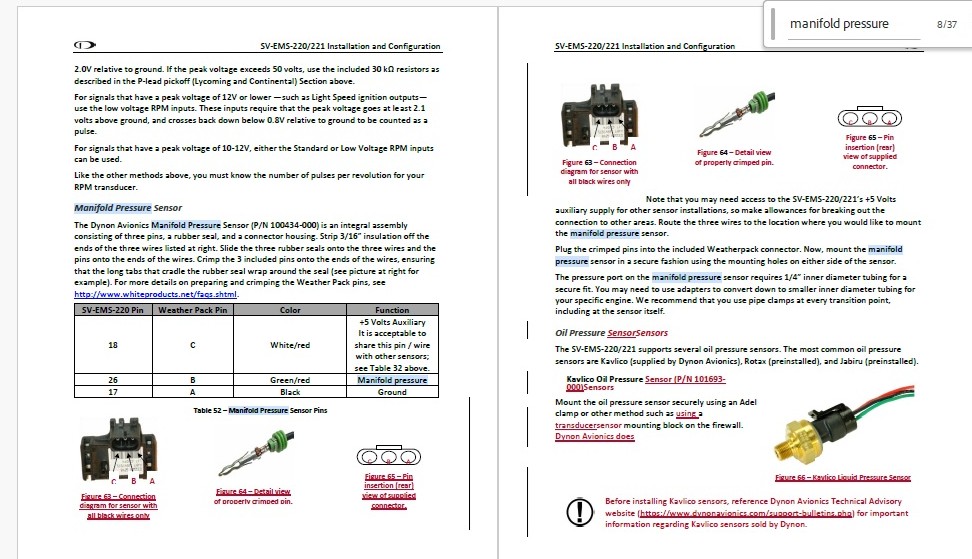

Dynon MAP install.jpg
