Pictures from Arlington

[bigbill25]

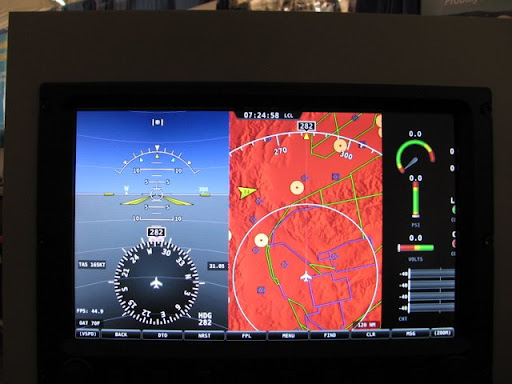

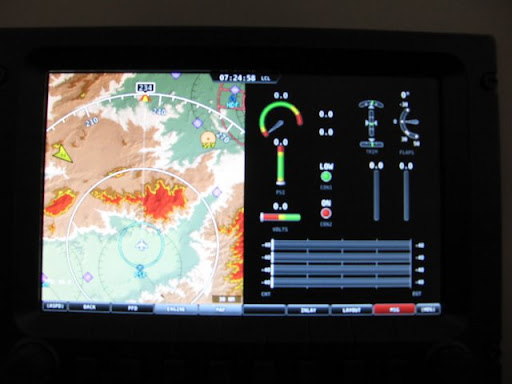

Vern Little visited the Dynon booth at Arlington and took a few pictures. Here are the two of the Dynon NG system:

No synthetic vision, speed tapes or altitude tapes? :-? I must be missing something... Looks like the EMS functions can "slide" off to the side. That's kind of neat.

--Bill



[dynonsupport]

Someone was apparently banging buttons on the unit to get the top picture. It's in a currently unsupported state, which is why a bunch of things look funny. It's also partially that the system is in simulator mode and has been flown deep underground (note the all red map page).

We do have synthetic vision and airspeed and altitude tapes.

The EMS sliding off the side is actually an artifact of that screen size not being fully implemented yet. In reality, you'll be able to organize a nice vertical strip of EMS information that you can specifically tailor to that screen size.



[vlittle]

Banging buttons? They were are lovingly pressed. I went through the entire combination of pages to get an idea of the operation, and Kirk didn't even notice.

In all fairness, I hosted Dynon at the Langley fly-in, so I think Kirk trusted me not to destroy anything.

BTW, I did a pretty good sales job and my buddy (and MDRA inspector) was impressed and will probably be buying one for his 9A.

Vern
