Servo wiring clarification

[p51dplt]

Can someone clarify why there are 2 female DS9 connectors showing in the wiring diagram?
Where are most of you splitting off the power, ground and interrupt wires?

Thanks.



[mmarien]

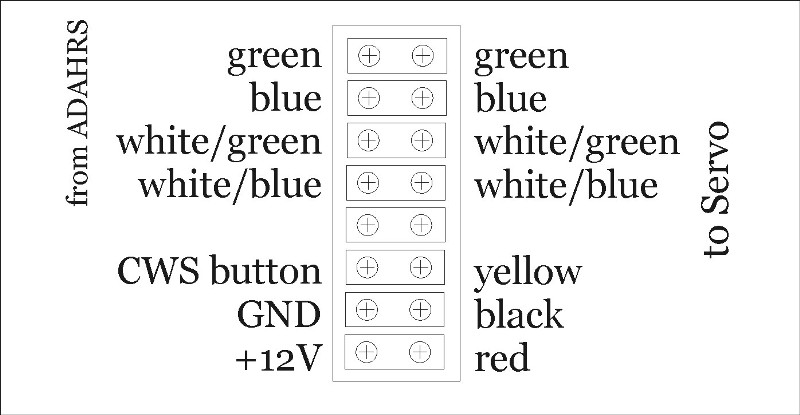

Not sure of why the two DS9 connectors other than to make it easy to remove the servo. I used a wire block to splice into the network. The servo were at the back near the ADAHRS so I spliced in there. One side is the network in and out and the other side in to the servos. I didn't cut all the network wires, just the ones I needed.



[p51dplt]

Good idea using the terminal strip, but I'd like to stick with the D-sub connectors, just don't understand the diagram.



[vlittle]

Here's a diagram showing how to modify a SkyView splitter

http://www.vx-aviation.com/sprocket/photos/panel_elec/schematics/AP.pdf

Vern
