TMA45 Help?

[Swim]

Hey all,

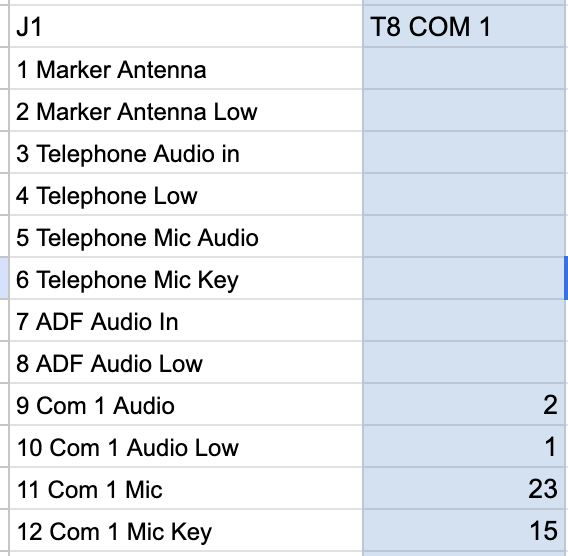

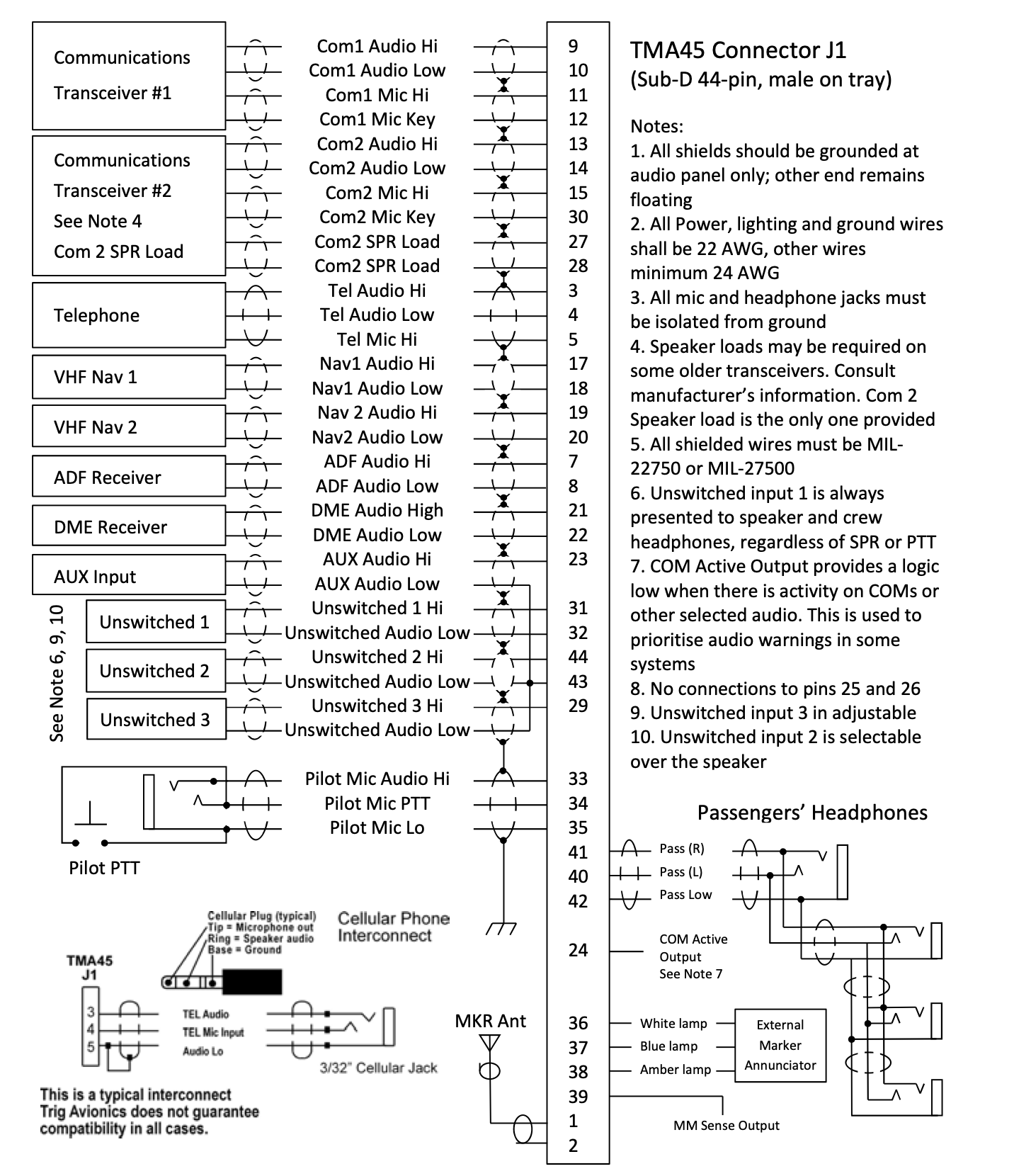

I'm working on the pinouts for the SV-COM-T8 to the TMA45 and my A&P and I are at a bit of a stalemate.

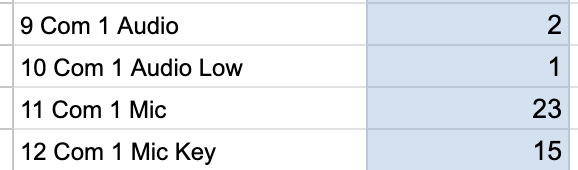

We're using the T8 as Com 1, and currently we've got the pinouts set

I'm not sure that's accurate. Any help?



[Swim]

Disregard. He figured it out. My pinouts were correct. All that was left was pin 9 that needed to go to the TMA45 common ground
