Activate aux com on HDX

[DY691]

Hello everyone,
I have installed a traffic detector called Superneurone in my aircraft.
In order to receive audio warnings, I need to activate the auxiliary audio input. My aircraft is equipped with Dynon HDX, which includes a Trig radio.
I haven't been able to find how to activate the auxiliary audio input on the various pages...
If anyone can tell me how to do this,
I'd be very grateful.
Guy



[GKC Aviation]

You don't say what model Trig VHF you have, But I will assume a TY91 or a TY96

On a TY91, connect your alert audio HI to pin 20 of the main unit connector.

If it is a TY96, then connect to Pin 14



[DY691]

Thank you, GKC Aviation, for your help.

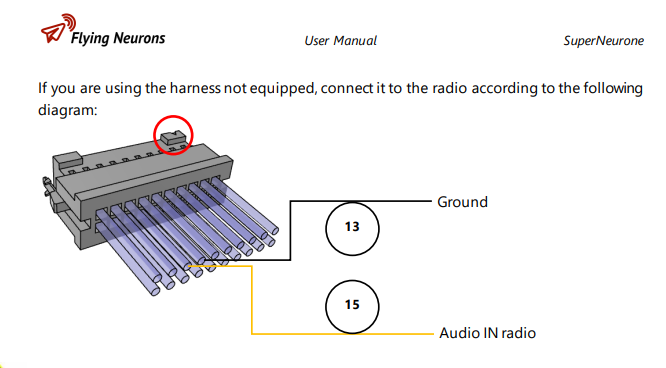

I have successfully connected the superneuron to pin 20 on my radio, but there is no sound in the headset.

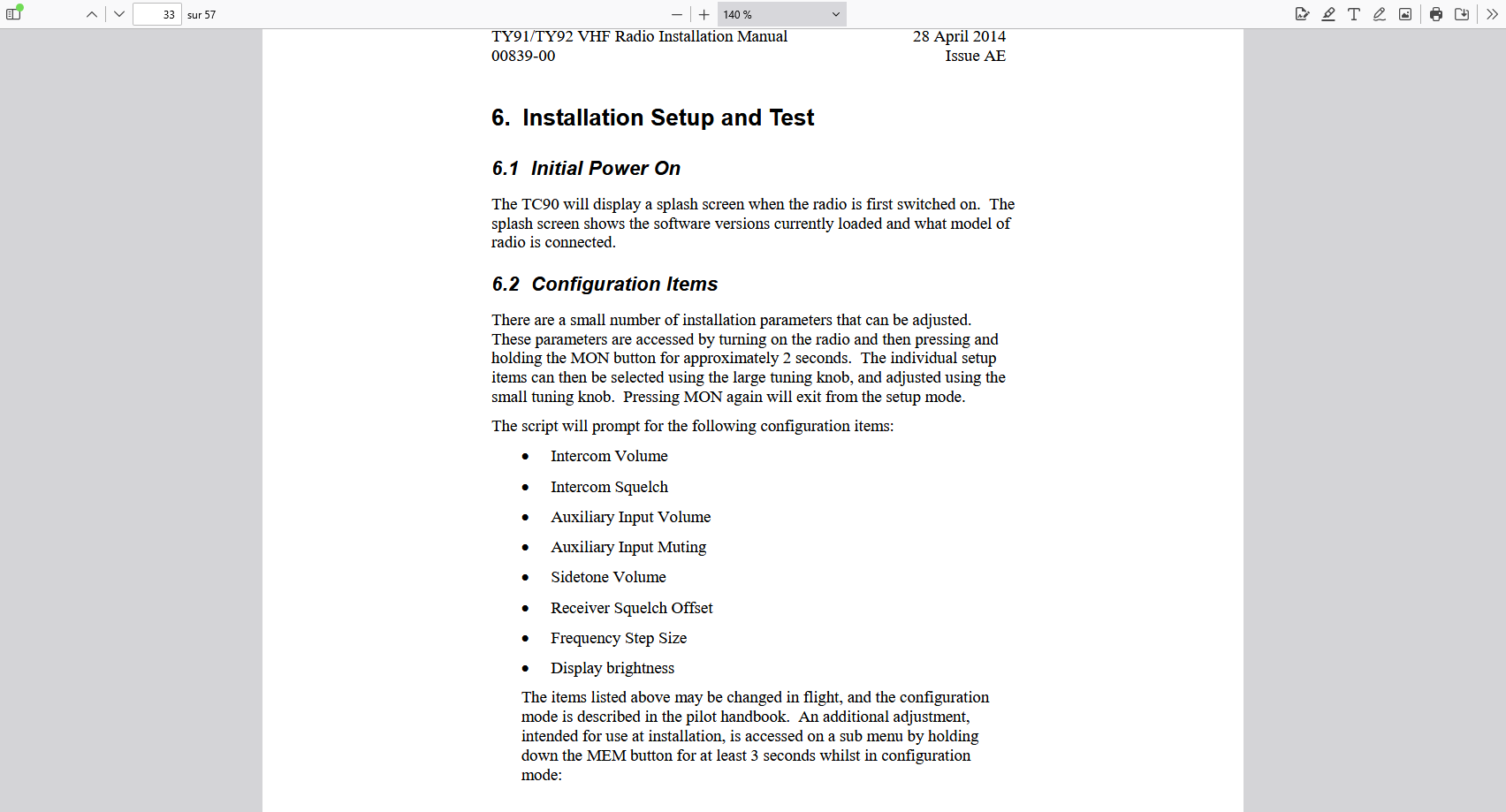

I am trying to find out how to activate or adjust the volume of the auxiliary input as indicated on the following page via the HDX.
Guy
