New Sportsman Panel

[mmarien]

Does anyone have the dimensions for the inserts for the new sportsman panel. A friend bought it for his GlaStar and we were going to have the inserts CNC cut. An AutoCAD drawing would be great but any digital format will work if someone had that. Otherwise dimensions would work. Just looking for the size of the inserts.



[mrdaud]

Do you still need insert info? I have the starter switch panel and CB panel on AutoCad. It is for a Glasair panel, but they should be the same.



[mmarien]

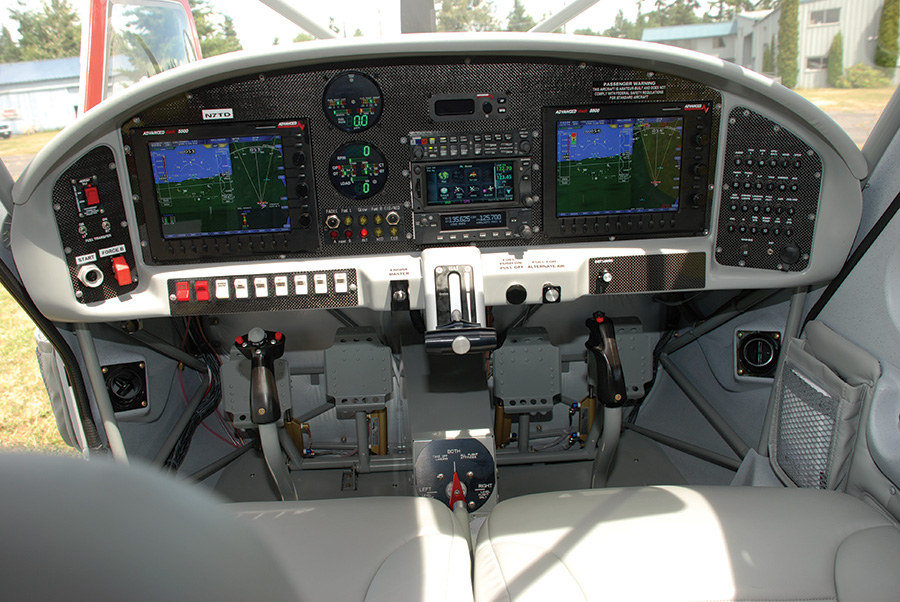

Thanks Dave. I found a high resolution picture and traced them in AutoCAD. I have all the panel outlines in AutoCAD DXF and used them in Front Page Express to order the panels. They fit pretty good. If I did them again I would do some very minor adjustments.

I have the DXF files is anybody wants them.



[TehranSD]

awesome picture )
thank you for sharing
